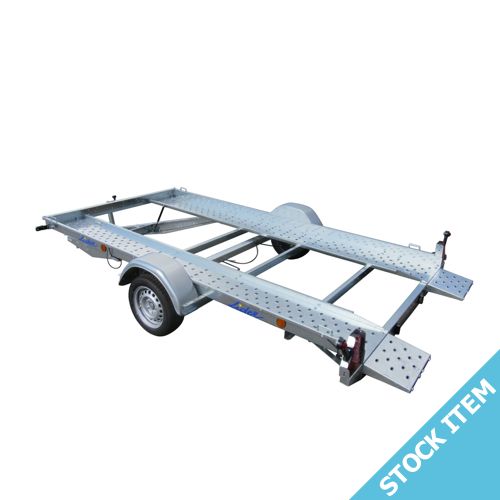

Lider 39750 Car Transporter
The lider 39750 is a braked, single axle, lightweight but strong car transporter, at 1300Kg Maximum Gross Weight, 1200/1100 & 1000Kg Gross Capacity also available, The internal bed size is 361 x 185 x 11cm.
The trailer has easy to uses damper assisted tipping to allow very low loading angle, optional hydraulic tipping is also available.
Standard features include: 1300 Kg axle and coupling head, heavy duty tie down points, latest 13 pin plug lighting system, Knott jockey wheel, 2 x 43×30 cm ramps, 2 wheel chocks and a 1200 kg winch + support and 13″ road wheels.
Numerous accessory’s options are available including : Spare wheel with support, Hydraulic Kit, and wood floor.
All Lider Trailers are already fully type approved to the new EC 2007/46 Type approval specifications and come with a certificate of conformity. These are modern trailers – lightweight but very strong construction.
Specification:
- Empty mass – 370 kg
- Maximum Gross Weight 1300 kg
- Estimated payload 930 kg
- Axle capacity – 1 x 1300 kg
- Internal dimensions – 361 x 185 x 11 cm
- Distance between rails 98 cm
- External dimensions – 540 x 237 cm
- Floor height – 47 cm
- Tyre size – 165R13
- Jockey wheel – Ø60
Standard Equipment:
- 2 fixed ramps 43 x 30 cm
- tilting springs
- winch 1200 kg + support
- 2 wheel chocks
- Jockey wheel
- 13 pin plug
Optional extras include:
- Spare wheel with support
- large ramp kit
- hydraulic kit
